LY Multistage Mixed Flow Pump (API610)

LY Multistage Mixed Flow Pump (API610)

WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
The main technical paramete
Diameter:50~300 mm
Flow: ~1200 m3/h
Pressure: ~ 2MPa
Temperature: -45~+180℃
S.G：≤1.6

Application Scope
LY multiphase mixed delivery pump is mainly used in the oil production and delivery process, and can be applied to the delivery of oil and gas with different gas contents, realizing the centralized purification, separation and storage of crude oil at the back end.
0086-813-8269991
Features and StructureProduct materialsProduct ConfigurationType spectrogramProduct Site Map

LY 多相混輸泵（API610）.JPG




Product Characteristics

  • Capable of conveying multiphase fluids with high gas content, up to 93% gas content.

  • Simple structure, easy maintenance, good cavitation resistance, and allows for a certain amount of solid particles.

  • Advantages include compact construction, lightweight, high flow rate, and good sand resistance.

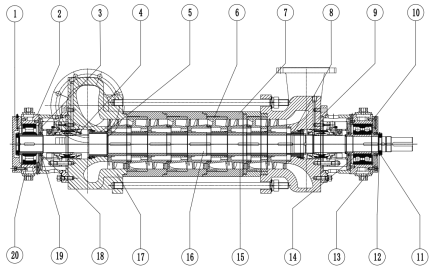

Product Structure

  • Composed of multiple impeller stages connected in series, each stage has its own inlet and outlet, providing higher pressure lift.

  • Two-point support effectively fixes the installation position of the mixed-transfer pump, making pump operation more stable.

  • Both end bearings are grease-lubricated and sealed with bearing isolators, facilitating sealing and maintenance, and reducing pump size.

  • Helical blades can transport multiphase motion with high gas content, have good cavitation resistance, and are not sensitive to particles.

  • The mechanical seals at the discharge chamber and suction chamber effectively control leakage of the conveyed medium, preventing environmental pollution.

  • Medium conveying direction: horizontal inlet, vertical outlet.

Material

Material Code

Parts name

National Standard

American Standard

Impeller

Guide vanes

Casing

Corrosion-resistant alloys

Cr30


●

●

●


TA2


●

●

●


TA10


●

●

●

Duplex stainless steel


2205

●

●

●



2507

●

●

●


022Cr25Ni7Mo4N


●

●

●


022Cr23Ni5Mo3N


●

●

●

Stainless steel

2Cr13


●

●

●


304

●

●

●


316

●

●

●


316L

●

●

●

06Cr19Ni10


●

●

●

3Cr13


●

●

●


Main Configuration

Manufacturer standard

Optional Configuration

Motor

Domestic Brands

Nanyang, Jiamusi, ABB, Innomotics

or designated brands

Bearing

SKF，NSK，FAG

or designated brands
