ZDQ wear-resistant and corrosion-resistant chemical slurry pump
Diameter:25~300 mm
Flow:~1200 m3/h
Head: ~100 m
Temperature: 0~+150℃
S.G：≤1.8
Application Scope
This pump is a centrifugal pump specially developed by our company for transporting slurry containing particles for industries such as metallurgy, fertilizer, salt mining, sewage discharge, power plants, and new energy. It is mainly used to transporthighconcentration, corrosion-resistant or corrosive slurries containing a large amount of solid materials.

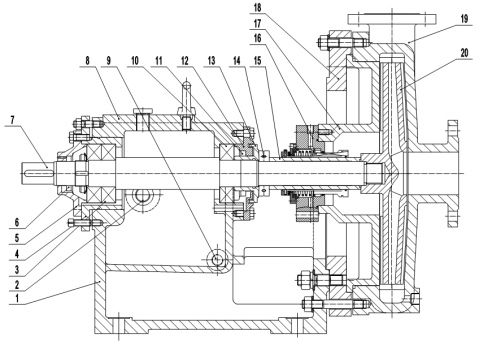

Product Characteristics and Structure

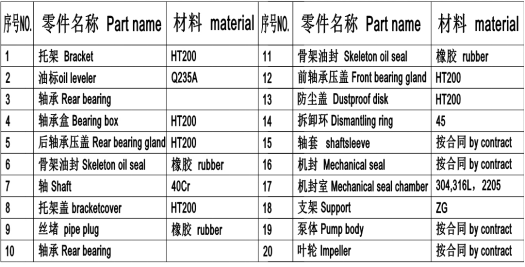

NO. | Part name | Material | |||||
corrosion resistant alloy | Cast steel | Stainless steel | |||||
Chinese Standard | American Standard | Chinese Standard | American Standard | Chinese Standard | American Standard | ||
1 | Pump body | 20# Alloy ZTA2 ZTA9 ZTA10 ZTC4 | Monel Hastelloy B Hastelloy C Ni-Resist1 Ni-Resist2 Ni-Resist3 | ZG260-400 ZG270-480 | WCA WCB | ZG15Cr12 ZG20Cr13 ZG03Cr18Ni10 ZG07Cr18Ni9 ZG0Cr18Ni12Mo2Ti 022Cr17Ni12Mo2 ZG1Cr18Ni9 ZG1Cr18Ni9Ti 0Cr26Ni5Mo2Cu3 00Cr22Ni5Mo3N 0Cr26Ni5Mo2 | CA-15 CA-15M CF-3(304L) CF-8(304) CF-8M(316) CF-3M(316L) CN-7M(302) ASTM106 CD-4MCu 2205 2507 |
2 | Impeller | ||||||
3 | Cartridge mechanical seal | ||||||
4 | Mechanical seal Chamber | ||||||
5 | Shaft | 40Cr | |||||
6 | Bearing box | Grey cast iron | |||||
Main Configuration | Manufacturer standard | Optional Configuration |
Motor | Domestic brands | Nanyang, Jiamusi, ABB, Innomotics |
or designated brands | ||
Bearings | HaWaLo | SKF，NSK，FAG |
or Optional Brands | ||
mechanical seal | Zigong Seal | Sinoseal,Chengdu Yitong |
or Optional Brands | ||
Flanges | Industry Standards | Chinese Standard GB/T 9124.1 |
European standard, German standard, American standard, Japanese standards or Optional | ||
| Claw type coupling, column pin coupling | Optional |
Product?s | |||||
