ZD series slurry pump (single casing)

ZD series slurry pump (single casing)

WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
The main technical parameters
Diameter:25~300 mm
Flow:10~1300 m3/h
Head: 10~70 m
Temperature: -20~+100℃
S.G：≤1.8

Application Scope
This series of pumps are mainly used for conveying neutral or alkaline slurries containing particles in the power, metallurgy, coal, building materials and other industries. As a slurry pump for desulfurization in power plants, the concentration of the solid-liquid mixture is usually: 20% for ash slurry and 30% for ore slurry。

0086-813-8269991

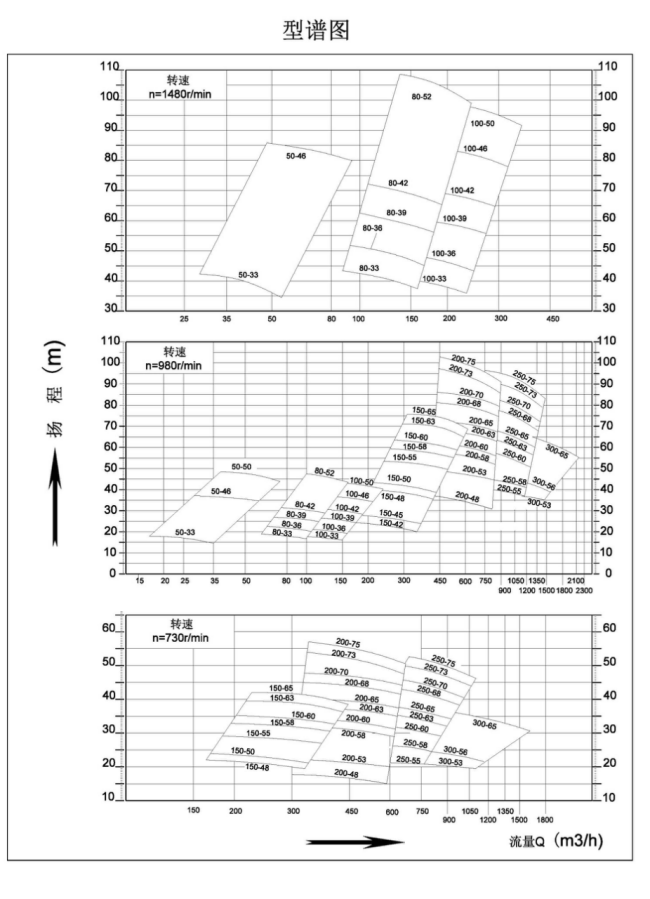

Features and StructureProduct materialsProduct ConfigurationType spectrogramProduct Site Map

ZD 系列渣漿泵(單泵殼).JPG

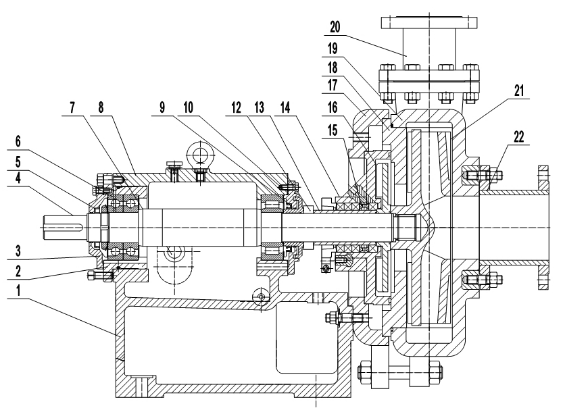

Product Characteristics and Structure

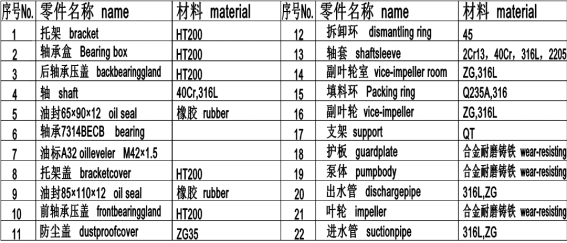

Material

Material Code

Part Name

GB Chinese Standard

Impeller

shaft

Protective plate

Volute casing

Alloy constructional steel

40Cr


●




42CrMo


●




38CrMo


●



Wear-resistant alloy

Cr30

●


●

●


Cr28

●


●

●

Wear-resistant alloy

Cr26

●


●

●

GM20

●


●

●

Z-I

●


●

●

Z-II

●


●

●

Z-III

●


●

●


Main Configuration

Manufacturer standard

Optional Configuration

Motor

Domestic brands

Nanyang, Jiamusi, ABB, Innomotics

or designated brands


Bearings

HaWaLo

SKF，NSK，FAG



or Optional Brands

mechanical seal

Zigong Seal

Sinoseal,Chengdu Yitong



or Optional Brands

Flanges

Industry Standards

Chinese Standard HG/T20592



European standard, German standard, American standard, Japanese standards or Optional


Coupling

Claw type coupling, column pin coupling

Optional
